PEX Systems
Four engineered systems for domestic and commercial water and gas installations.
Yellow/Green Water & Gas Crimp System
PEX-B PE100 PN16/PN20 is a WATER & PEX-AL-PEX GAS CRIMP JOINT SYSTEM. The Lightning PEX-b PE100 PN16 and PN20 system is a competitively priced option for installers and efficient to install. The PEX-b PE100 system is designed to be cost effective in domestic and light commercial installations.
Pipe Benefits
- —Corrosion resistance
- —Acoustic insulation — minimal noise caused by water transfer
- —PEX pipe flexibility reducing water hammer
- —No build-up of lime or scale in the bore of the pipe
- —Strong material with superior performance against abrasion and impact
PE100 Water Pipe
Install to AS/NZS 3500.1:2003. PN16 20mm pipe nominal pressure rating 1,600 kPa @ 20°C; PN20 16mm pipe nominal pressure rating 2,000 kPa @ 20°C.
- ✓Suitable for potable hot and cold water
- ✓Titanium coloured PE outer layer
- ✓Dimensions 16–20mm
- ✓Pipe clearly labelled — Green Crimp fittings only
Crimp Yellow & Green Lead-Free Fittings
Lead-free brass PN16/PN20 fittings approved for both water and gas installations. Suitable with the PE100 water pipe range and the PEX-AL-PEX gas pipe.
Crimp Gas Pipe (PEX-AL-PEX)
PEX with aluminium core that can be formed/bent to suit modern construction. Install to AS/NZS 5601.1:2013. Normal operating temperature 80°C; operates to 70 kPa @ 80°C.
- ✓Five layers with longitudinally welded aluminium core (oxygen diffusion barrier)
- ✓Yellow PEX outer layer
- ✓Suitable for NG and LPG
- ✓Dimensions 16–50mm
- ✓Rigid, holds shape when installed

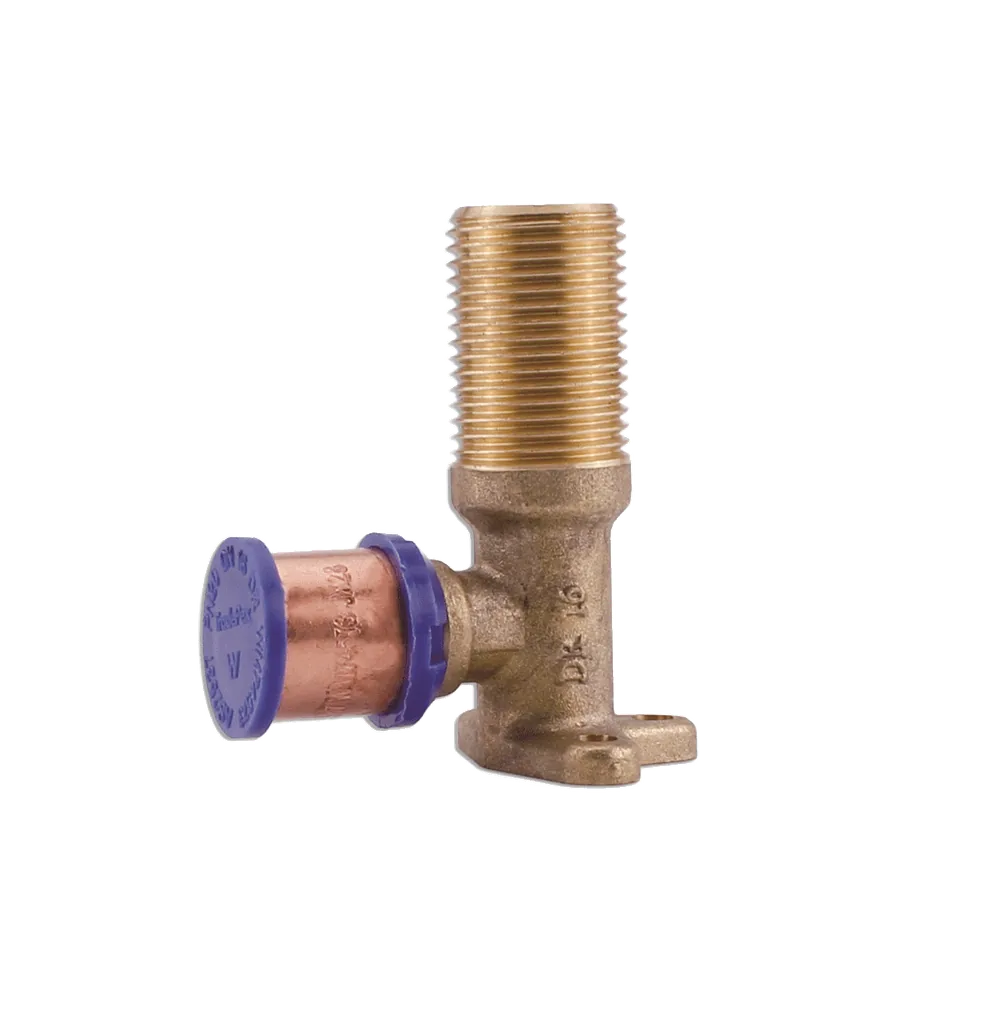

PEX-A PN20 Blue Crimp System
All advantages of a PEX-A PN20 pipe with the speed of a crimp system — a cost-efficient alternative to Sleeve or Lightning systems.
Pipe Benefits
- —Corrosion resistance
- —Acoustic insulation — minimal noise caused by water transfer
- —Reduced water hammer
- —PEX-A outstanding memory properties aid installation efficiency
- —No lime/scale build-up
- —Strong, abrasion/impact resistant
PN20 Water Pipe
Install to AS/NZS 3500.1:2003. Hot and cold water; normal operating temp 65°C (short exposure to 95°C); operates to 2,000 kPa @ 20°C.
- ✓Suitable for potable water
- ✓Black PE outer layer
- ✓Dimensions 16–25mm
- ✓Flexible and durable (short 95°C exposure)
- ✓Pipe clearly labelled — Blue Crimp, Sleeve and Lightning fitting only

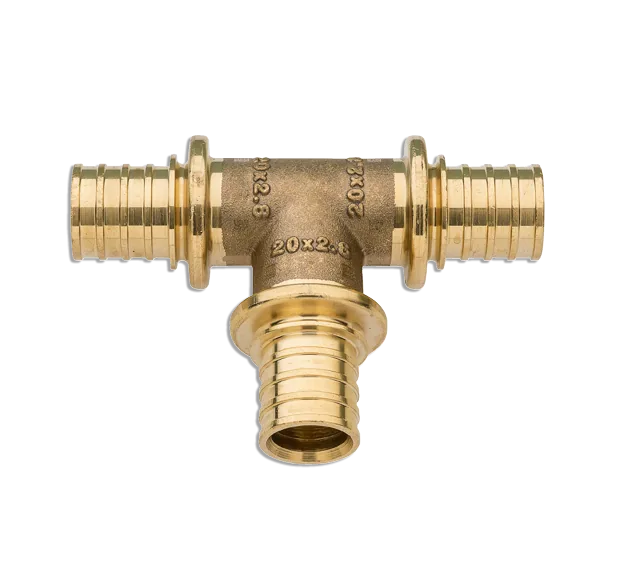

PEX-A Sleeve System — Water & Gas
Lead-free brass sleeve fitting for water and/or gas. PEX-A PN20 water pipe provides strength and durability (short exposure to 95°C). Sleeve system operates with PEX-A water, PEX-AL-PEX gas and EVOH OB hydronic. PEX-B is not permitted.
Pipe Benefits
- —Corrosion resistance
- —Acoustic insulation — minimal noise caused by water transfer
- —Reduced water hammer
- —PEX-A outstanding memory properties aid installation efficiency
- —No lime/scale build-up
- —Strong, abrasion/impact resistant
PN20 Water Pipe
Install to AS/NZS 3500.1:2003. Hot and cold water; normal 65°C, short 95°C; up to 2,000 kPa @ 20°C.
- ✓Black PE outer layer
- ✓Dimensions 16–25mm
- ✓Blue Crimp / Sleeve / Lightning only
Sleeve Gas Pipe (PEX-AL-PEX)
Form-stable aluminium core; install to AS/NZS 5601.1:2013; normal 80°C; up to 70 kPa @ 80°C.
- ✓Five layers with aluminium core (oxygen diffusion barrier)
- ✓Yellow PEX outer layer
- ✓Suitable for NG and LPG
- ✓Dimensions 16–32mm
- ✓Rigid, holds shape when installed

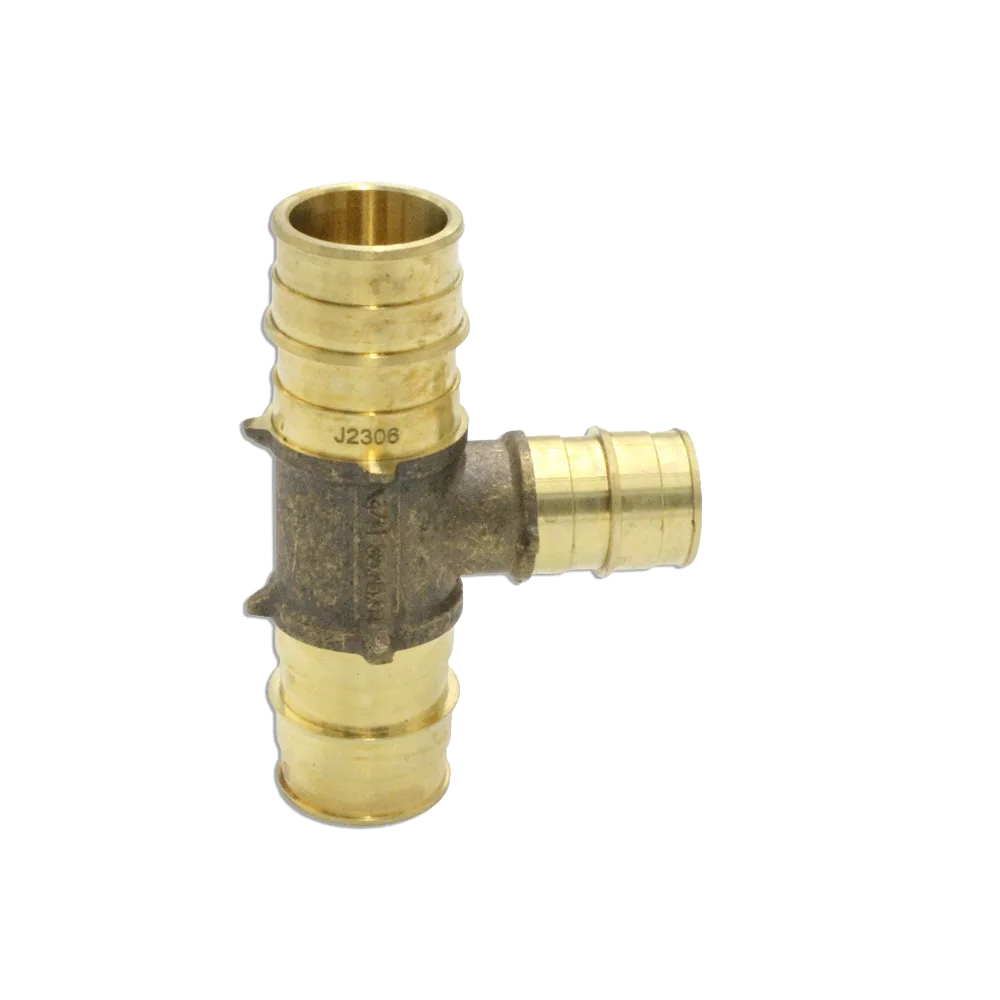

Lightning Expansion System
Lightning PEX-a pipe with lead-free brass or Stainless-Steel fittings, engineered to be fast and reliable. With only one tool, the system is up to 30% quicker than PN20 compression joints. Using the thermo-elastic memory of PEX-a, the pipe and ring apply increasing pressure on the fitting to deliver a strong seal for cold and hot water.
Pipe Benefits
- —Corrosion resistance
- —Acoustic insulation — minimal noise caused by water transfer
- —Reduced water hammer
- —PEX-A outstanding memory properties aid installation efficiency
- —No lime/scale build-up
- —Strong, abrasion/impact resistant
PN20 Water Pipe
Install to AS/NZS 3500.1:2003. Hot and cold water; normal 65°C, short 95°C; up to 2,000 kPa @ 20°C.
- ✓Black PE outer layer
- ✓Dimensions 16–32mm
- ✓Flexible and extremely durable (short 95°C exposure)
- ✓Pipe clearly labelled — Blue Crimp, Sleeve and Lightning fitting only
Approvals & Certifications
Standards and licence numbers for Lightning products, as stated in the Lightning technical documents. Download the Technical Guide for Architects or the Press System brochures for the full approvals.
| Product | Standard | Approval | Notes |
|---|---|---|---|
| PE-X pipe | AS/NZS 2492:2007 | Watermark licence WM 75207 | Crosslinked polyethylene (PE-X) pipe for pressure applications. |
| Brass and stainless steel fittings (PEX systems) | AS/NZS 2537.2:2011 | Watermark licence WM74832 | Mechanical jointing fittings for PE-X pressure applications, and plastic piping systems for hot and cold water installations. |
| PEX-AL-PEX gas pipe | AS 4176.8:2010 | ISO Type 5, licence AMI 7457 | Multi-layer pipe systems for consumer gas installations, maximum operating pressure up to and including 500 kPa. Install to AS/NZS 5601.1:2022. |
